Deskripsi

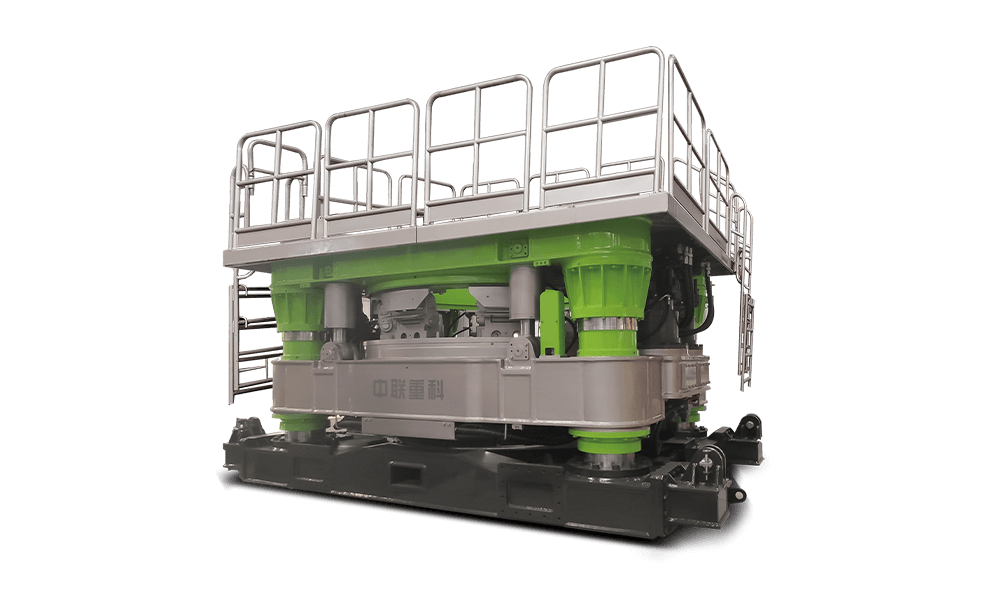

ZRT160H full casing rotator is mainly applied in the construction of pile foundations between φ0.8m-φ1.6m.
ZOOMLION ZRT160H is applied the reinforced wedge-shaped main clamping system, the casing holding force is increased by 10% and the pressure holding capacity is increased by 50%. There is no slipping in the process of rotating and pulling, which makes the product lead in reliability.
With the new-generation remote wired control, the operator can be kept off the dangerous work area and the noise area of the power station. Safe, simple and flexible human-machine interaction as well as wide vision improve the operation comfort.
ADVANTAGE INTRODUCTION
- No slipping in the process of rotating and pulling
- Convenience of cooperation with other equipment
- The three-in-one combined radiator system
- Real-time adjustment
Working device
| Drilling diameter | Φ800-Φ1600mm |
| Rotary torque | 1530/910/515kN.m |
| Rotary speed | 1.3/2.2/3.9rp |
| Max.pushing force | 380+180kN |
| Max.pulling force | 2450kN |
| Push/puling stroke | 500mm |
| Capacity of aux.damp | – |
| Weight | 28t |
Hydraulic power station
| Engine model | Cummins QSC8.3-C260-30 |
| Engine power | 197/2000kW/rpm |
| Fuel consumption | 195g/kWh |
| Max.engine torque | 1135/1300N-m/rmp |
| Systempressure | 34Mpa |
| Weight | 6t |
| Control method | remote wired control |
